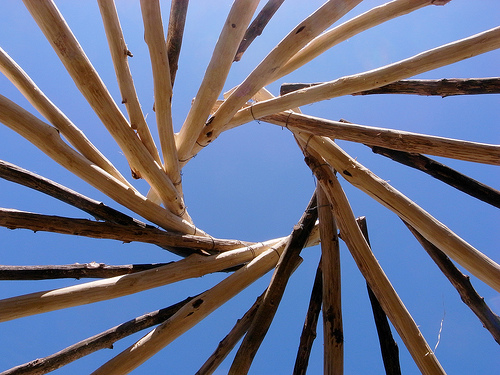

Reciprocal roof (self supporting)

Reciprocal roof (self supporting)

The reciprocal frame is a roof structure where each beam both supports and is supported by other beams in the roof structure. A minimum of 3 beams is required to create a reciprocal frame roof. As each beam supports the next in a reciprocal manner no internal support structure is required.  Only the outer end of each beam requires support which will normally be a post used for the wall.  The roof loads are transferred to these posts and in turn to the supporting foundation. The beams can be fabricated from timbers, laminated wood, steel or reinforced concrete. A very inexpensive roof structure can be made from logs.

While building it you need to support the first beam temporarily; when the support is removed the whole structure should neatly lock together.
Sector analysis for optimal land use

Sector analysis for optimal land use

One of the fundamental aspects to designing a sensible landscape for habitation and production is the consideration of the various external energies, forces and factors that can impact the site. These commonly include sunlight, wind, visibility, water flow, wildfire and wildlife.

Mapping the 'sectors' where these threats or energies originate you can help determine the placement of elements (plantings, buildings, earthworks) that benefit from or lessen the impact of these forces.

Most of these sectors are easy to identify with on the ground observation or inspection of detailed maps while seasonal sun angles are available for a known latitude.

Local conditions such as hills, valleys and large trees modify wind directions and intensity, cast shade and impact fire rick and behavior. These site specific characteristics may be evident to a well trained eye or can be learnt over an extended period of time spent on site or in discussion with previous occupants or neighbors.

Exclusion / Restrict flow
Generally it is desirable to exclude strong winds by planting fast growing shelter trees suitable for the site and of appropriate heights. This may be combines with fire 'proofing' by selecting naturally lass flammable species.
Roads and other thoroughfares are a source of noise, possible pollution and fire risk and the curious eyes of passers. For privacy and security reasons it may be advisable this with planting or construction.

Inclusion / Aid flow
Sunlight (solar energy) is essential for growth and can assist in many other processes or activities such as drying fruit or washing, heating water etc.
Allowing water to enter the site is usually valuable but too much can cause issues so having suitable drainage is essential.
Cold air naturally flows down slope but can 'pool' or get trapped behind dense plantings. If frosts are a problem, considering cold air flow may help improve growing conditions.
Zones as a design concept

Zones as a design concept

Thoughtful placement of elements within the overall system and their relationship to one another is key to achieving an effective layout and efficient working space.

The zone model of permaculture in its simplest form is generally represented as a number of concentric areas radiating outward from the primary dwelling space or focal point of activity. The basic ideas is that the more frequently we interact with an element the closer and easier to access it should be. Like many aspects of the permaculture way, this is really just commonsense, something eroded by cheap, abundant energy and technology.

As always, this concept is a guide only and there may be exceptions. For example it may make sense to locate a seasonal garden at at a distant location if that site reduces the need for daily irrigation.

Sometimes placement is non-negotiable, such as a rural mailbox requiring daily visits. This can result in zones being drawn out along routes of frequent travel or focusing around areas of high productivity (water bodies, rich soils etc.)

Being a subset of a living, dynamic system, zone boundaries are not set in stone and may pulse with the seasons or shift as the biological state or built environment changes and develops through time.
