Climate, weather and mapping

Local terrain and weather influences the types of enterprises that are suitable for a given location. Detailed maps allow for better planning and detailed, accurate design of landscape improvements.

Map all

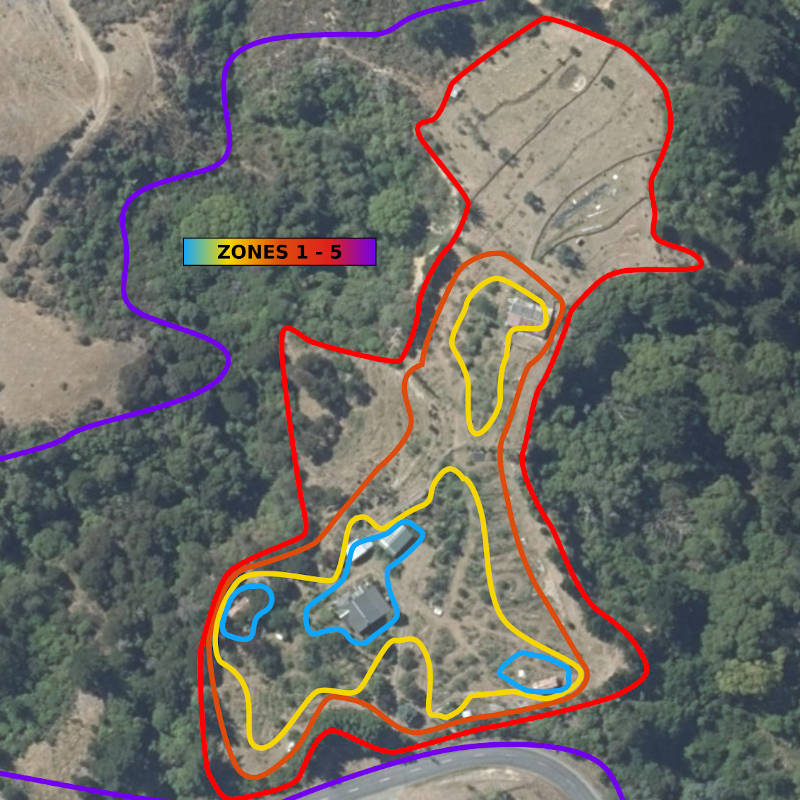

Zones as a design concept

Zones as a design concept

Thoughtful placement of elements within the overall system and their relationship to one another is key to achieving an effective layout and efficient working space.

The zone model of permaculture in its simplest form is generally represented as a number of concentric areas radiating outward from the primary dwelling space or focal point of activity. The basic ideas is that the more frequently we interact with an element the closer and easier to access it should be. Like many aspects of the permaculture way, this is really just commonsense, something eroded by cheap, abundant energy and technology.

As always, this concept is a guide only and there may be exceptions. For example it may make sense to locate a seasonal garden at at a distant location if that site reduces the need for daily irrigation.

Sometimes placement is non-negotiable, such as a rural mailbox requiring daily visits. This can result in zones being drawn out along routes of frequent travel or focusing around areas of high productivity (water bodies, rich soils etc.)

Being a subset of a living, dynamic system, zone boundaries are not set in stone and may pulse with the seasons or shift as the biological state or built environment changes and develops through time.
A bespoke rain gauge

A bespoke rain gauge

Our high tech, digital rain gauge device finally failed and rather than replace it with another complex 'solution' I decided to construct a more basic, traditional instrument, only on a larger scale. Essentially this is just a funnel that intercepts and collects a given area of rainfall and concentrates it in a narrow tube, magnifying the results for easy measuring.

I purchased a cheap stainless steel funnel with a diameter of 52mm connected to 2 meters of clear plastic tubing with a diameter of 12.5mm.
The ratio of cross-sectional area between the two diameters is 17 so each 1mm of rainfall gathered by the funnel displays as 17mm in the tubing.

The tap at the bottom is required to drain the gauge after each measuring period.
August 25, 2019
  rain  technology  zone1

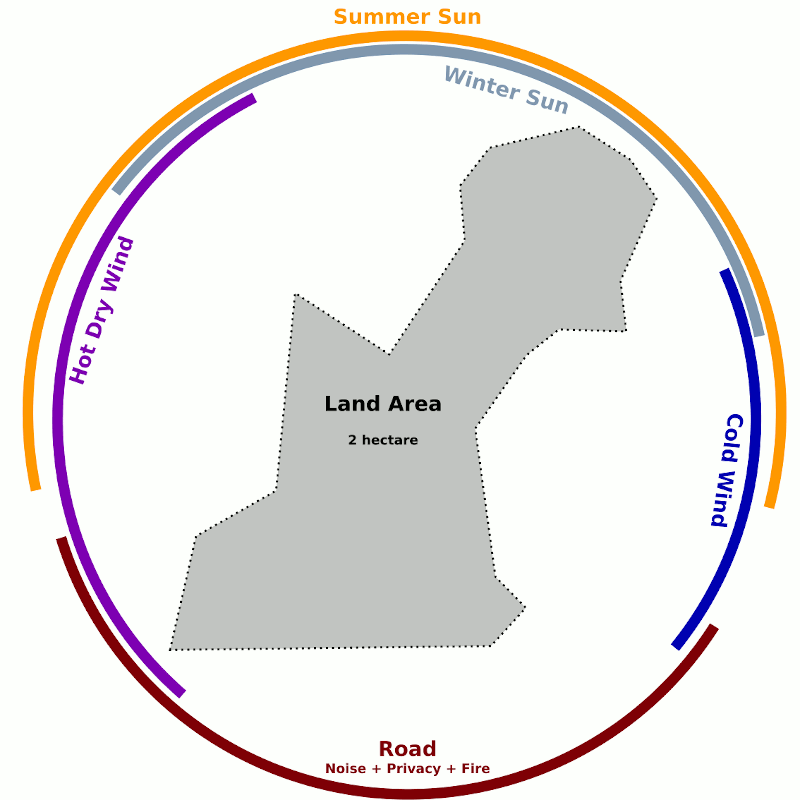

Sector analysis for optimal land use

Sector analysis for optimal land use

One of the fundamental aspects to designing a sensible landscape for habitation and production is the consideration of the various external energies, forces and factors that can impact the site. These commonly include sunlight, wind, visibility, water flow, wildfire and wildlife.

Mapping the 'sectors' where these threats or energies originate you can help determine the placement of elements (plantings, buildings, earthworks) that benefit from or lessen the impact of these forces.

Most of these sectors are easy to identify with on the ground observation or inspection of detailed maps while seasonal sun angles are available for a known latitude.

Local conditions such as hills, valleys and large trees modify wind directions and intensity, cast shade and impact fire rick and behavior. These site specific characteristics may be evident to a well trained eye or can be learnt over an extended period of time spent on site or in discussion with previous occupants or neighbors.

Exclusion / Restrict flow
Generally it is desirable to exclude strong winds by planting fast growing shelter trees suitable for the site and of appropriate heights. This may be combines with fire 'proofing' by selecting naturally lass flammable species.
Roads and other thoroughfares are a source of noise, possible pollution and fire risk and the curious eyes of passers. For privacy and security reasons it may be advisable this with planting or construction.

Inclusion / Aid flow
Sunlight (solar energy) is essential for growth and can assist in many other processes or activities such as drying fruit or washing, heating water etc.
Allowing water to enter the site is usually valuable but too much can cause issues so having suitable drainage is essential.
Cold air naturally flows down slope but can 'pool' or get trapped behind dense plantings. If frosts are a problem, considering cold air flow may help improve growing conditions.
Visualising yearly rainfall distribution

Visualising yearly rainfall distribution

This chart shows annual rainfall by month for the years 1990 - 2014 (and partial 2015). While there is a definite tenancy for rain to occur in June and July there is also obvious bumps in October, March and April. Wider areas of colour represent times of high rainfall while narrow regions are dryer.
It becomes clear that rainfall can occur at any time throughout the year and that dry years follow periods high rainfall. With this in mind it makes a lot of sense to be approaching water catchment and management with a multi year view of charging up soil moisture during wet times to carry us through periods of below average rainfall.

Data obtained from NIWA Ferniherst dataset
September 20, 2015
  weather  rain  climate  chart

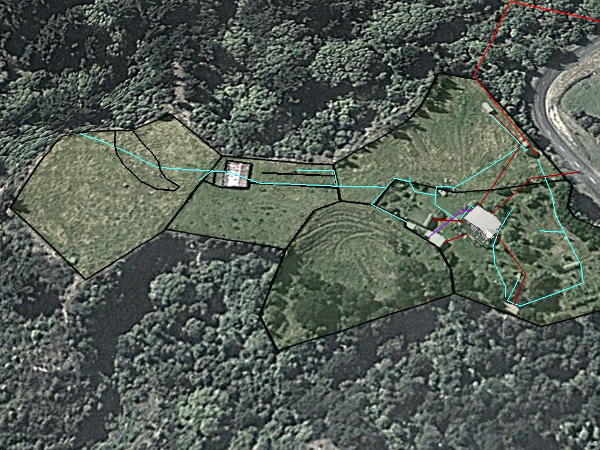

Property mapping service

Property mapping service

Having a detailed map of your farm or lifestyle block assists with planning future alterations and can be a valuable asset to new owners. I can produce digital maps containing access ways, paddock areas, fence lengths, water and electricity networks and other important features.
